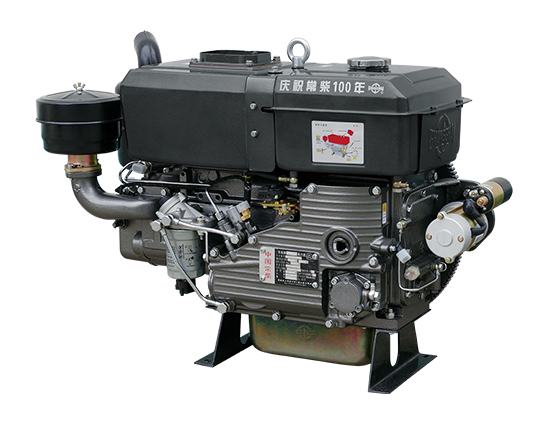

Model/Items | H20 | L24 | L28 | 192FA | CC12 | ||||||
Engine type | Horizontal, water-cooled, four-stroke | Vertical, air-cooled, four-stroke | Vertical, water-cooled, four-stroke | ||||||||
Combustion chamber type | Direct injection | ||||||||||
Cylinder diameter (mm) | 105 | 115 | 125 | 92 | |||||||
Stroke (mm) | 120 | 120 | 120 | 75 | |||||||
Displacement (L) | 1.039 | 1.246 | 1.473 | 0.499 | |||||||
Net Power Rating (kW) | 13.2 | 13.6 | 16.2 | 16.8 | 18.4 | 18.8 | 8.2 | 7.5 | 9.6 | 8.7 | 8.6 |
Rated speed (r/min) | 2200 | 2300 | 2200 | 2300 | 2200 | 2300 | 3600 | 3000 | 3600 | 3500 | 3000 |
Maximum net torque (N.m) | 66.5 | 81.6 | 93.5 | 24.6 | 30.7 | ||||||
Maximum net torque point speed (r/min) | ≤1760 | ≤1760 | ≤1760 | ≤2670 | ≤2570 | ||||||
Idle speed (r/min) | ≤850 | ≤850 | ≤850 | ≤1500 | ≤1500 | ||||||
Starting mode | Electric start | ||||||||||
Net mass (kg) | 150 | 185 | 208 | 55 | 55 | ||||||
Overall dimensions [L×W×H (mm)] | 836×410×640 | 875×450×688 | 916×475×709 | 420×440×497 | 420×440×500 | ||||||
I. Product Features: ：
1. High-pressure fuel injection system: The fuel pressure building and injection systems are independent of each other. The ECU controls the injector solenoid valve to realize the opening and termination of injection, maintains stable high-pressure fuel injection, and accurately controls the injection timing and injection quantity.
2. Good emission consistency: Timed and quantitative high-pressure fuel injection and reasonable control of pre-injection and main injection processes can effectively improve diesel engine performance and accurately control emissions.
3. Low noise and low idle speed: The common rail system is adopted to achieve multiple quantitative injections, effectively reducing combustion noise and achieving low idle speed.
4. Good cold start performance: high injection pressure, improving the quality of oil and gas mixing, effectively reducing cold start time and starting smoke.
II. Scope of Application
tricycles, tractors, construction machinery, water pump units, generator units and other various fields.
